Mesh Wi-Fi Still Has Dead Zones? How to Fix Node Placement, Backhaul, and Slow Satellites

Mesh Wi-Fi is sold as the cure for dead zones, but adding more nodes does not automatically improve coverage. A mesh point still needs a good connection back to the main router or another mesh node.

If you place a satellite deep inside the dead zone, it may simply repeat a weak connection.

Think about two wireless links, not one

With a wireless mesh node, performance depends on:

The connection from your phone/laptop to the nearby node.
The connection from that node back through the mesh.

The first connection can show full Wi-Fi bars while the second is weak.

That is why a device can appear strongly connected but still have slow Internet.

Do not place the node where Wi-Fi is already unusable

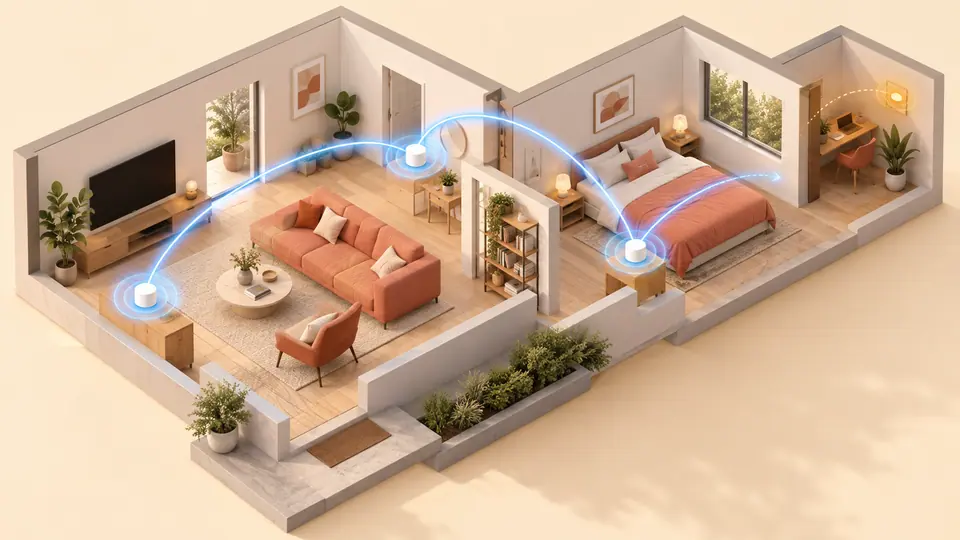

Place the mesh node somewhere between the main router and the problem room—where it can still receive a strong upstream signal.

Google’s current mesh guidance says the quality of the connection between router and points is critical, and a weak mesh link becomes a speed/reliability bottleneck.

Use your mesh system’s built-in test

Google Nest Wifi, TP-Link Deco, eero, Orbi, and other systems provide some form of node/mesh quality information.

Run that test after every placement change.

Do not rely only on the signal bars of the phone connected to the satellite.

Move nodes into the open

A good node location is typically:

Off the floor.
Out in the open.
Away from large metal objects.
Not hidden inside a cabinet.
Not behind a television.
Not directly beside a microwave.
Not surrounded by dense concrete/brick walls.

Google similarly recommends open, unobstructed placement and moving points closer together when mesh quality is weak.

Too many nodes can make things worse

More Wi-Fi radios mean more overlapping coverage and potentially more wireless contention.

In a smaller home, three or four nodes placed too close together can create unnecessary complexity.

Start with the fewest nodes needed for good coverage and add one only when testing shows a genuine coverage gap.

Understand wireless backhaul

Backhaul is the link carrying traffic from satellite nodes back toward the main router.

Some mesh systems use the same Wi-Fi radios for both clients and backhaul. Others have an additional dedicated band or more flexible multi-link arrangements.

When the backhaul is wireless, walls and distance reduce its capacity just as they reduce normal Wi-Fi.

Ethernet backhaul can transform a mesh

If your home has Ethernet cabling, connect mesh nodes by Ethernet where your mesh system supports it.

Google officially supports wired backhaul on compatible Nest Wifi/Google Wifi devices with Ethernet ports.

Wired backhaul removes the node-to-node wireless link as the bottleneck and gives the satellite a stable path back to the router.

Do not assume every “mesh point” has Ethernet

Some product families mix router units with satellite units that have no Ethernet ports.

Check the exact model. Google, for example, notes that some Nest Wifi points cannot be hardwired even though router units can.

Use a switch when you need more ports

A gigabit or multi-gigabit Ethernet switch can connect wired mesh nodes and local devices, assuming the topology is supported by the mesh vendor.

Avoid creating loops by connecting the same switch/network path in more than one unintended way.

Check the main router placement too

A perfectly positioned satellite cannot fully compensate for a primary router locked in a metal cabinet at one end of the building.

If your modem location forces poor router placement, consider running a longer Ethernet cable from the modem/ONT to a more central router location.

Separate ISP speed from mesh speed

Before relocating nodes, run a speed test at or through the main router.

If the router itself receives only 80 Mbps on a 500 Mbps Internet plan, the mesh is not the first problem.

Check the ISP connection, modem/ONT, WAN cable, and router WAN port first.

Then test beside each node

Stand close to the main router and test.

Then move beside each mesh node and test again.

If performance is good near the router but poor near one satellite, focus on that node’s backhaul and placement.

Older client devices still limit themselves

A Wi-Fi 5 phone does not become Wi-Fi 7 because it connects to a Wi-Fi 7 mesh.

Google’s guidance likewise notes that client capability affects achievable speeds.

Compare the same device in different locations before comparing two very different devices.

2.4 GHz and 5/6 GHz behave differently

Lower frequencies usually travel farther through walls but offer less capacity.

Higher bands offer faster speeds but generally lose strength more quickly through obstacles.

Mesh systems often steer devices automatically, so do not assume every slow connection is a failure to “choose 5 GHz.”

Guest networks and IoT isolation can complicate tests

Guest networks sometimes isolate devices from the main LAN. That can affect printers, casting, smart-home control, and file sharing.

When troubleshooting a mesh, first test ordinary Internet speed on the main network. Diagnose local-device access separately.

Double NAT usually is not the cause of a dead zone

Running a mesh router behind an ISP router can create double NAT. That can matter for port forwarding, some games, and inbound services.

It does not normally explain why one bedroom has weak wireless signal.

Do not switch routers into bridge mode as a generic Wi-Fi speed fix unless you are solving a specific routing/NAT design problem.

A practical placement process

Test Internet speed at the main router.
Put the first node halfway toward the dead zone.
Run the mesh/node test.
Move it closer to the router if backhaul is weak.
Test performance near the node.
Add another node only if coverage still requires it.
Use Ethernet backhaul where practical.

The most important rule

A mesh satellite needs good service in order to provide good service.

Do not put it where Wi-Fi has already died. Put it where the main network is still healthy enough to extend.
